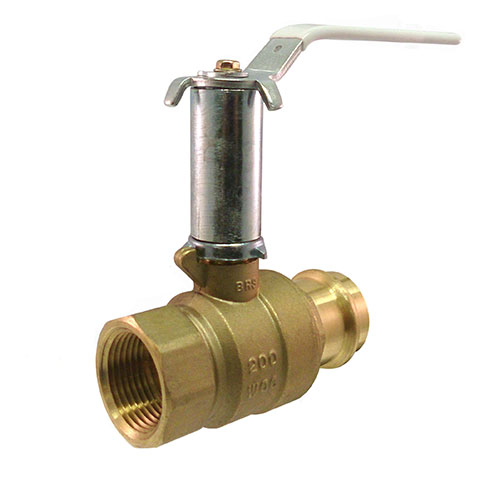

UPBA491S
- Two-Piece Low Lead Brass Ball Valve, 200 psi @ 250 Degrees F, Threaded x Press Ends
- Low Lead Valve For Potable Water
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Description
| Material | Lead Free Brass |
|---|---|
| ANSI/Pressure Rating | 200 psi @ 250 Degrees F |
| End Connection | Press X Threaded |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Full |
| Ball | Stainless Steel |
| Operator | Extension Handle with Memory Stop |
| Product Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/2"
0.58
1.14 x 0.51 x 3.75
6
6.8898 x 6.1024 x 2.5591
3/4"
1.02
1.31 x 0.76 x 3.75
4
7.4409 x 6.4173 x 2.7559
1"
1.4
1.53 x 0.98 x 4.35
6
7.7165 x 6.1417 x 4.5276
1-1/4"
2.02
1.71 x 1.26 x 4.58
4
9.3307 x 6.1417 x 4.0158
1-1/2"
3.02
1.88 x 1.5 x 4.75
4
10.9055 x 6.9291 x 4.1339
2"
5.76
2.19 x 2 x 5.25
2
12.5984 x 7.5591 x 3.3465
