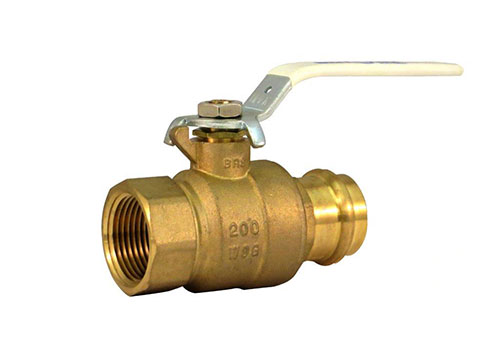

UPBA490B

  • Two-Piece Low Lead Brass Ball Valve, 200 psi @ 250 Degrees F, Press x Threaded Ends
  • Handles- The Inulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Locking Handle is Standard on 2 1/2″ and 3″
  • Low Lead Valve For Potable Water

Product Documents

IOMs

Certifications

Spec Sheets

3D CAD Files

Product Videos

alterna

Description

Material

Lead Free Brass
ANSI/Pressure Rating

200 psi @ 250 Degrees F
End Connection

Press X Threaded
Body Style

Two – Piece
Seat Material

PTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Categories: , ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.48
3.03 x 1.01 x 1.46
10
6.2205 x 5.748 x 2.4409
3/4"
0.85
3.58 x 1.26 x 1.93
6
6.9291 x 5.1969 x 2.9528
1"
1.2
4.29 x 1.48 x 2.1
6
7.7165 x 6.1417 x 3.3465
1-1/4"
1.88
4.84 x 1.76 x 2.33
4
9.3307 x 5.1575 x 4.0158
1-1/2"
2.8
5.91 x 2 x 2.52
4
10.9055 x 5.9449 x 4.1339
2"
5.5
6.93 x 2.5 x 2.96
2
12.5984 x 5.748 x 3.3465
