UP8603

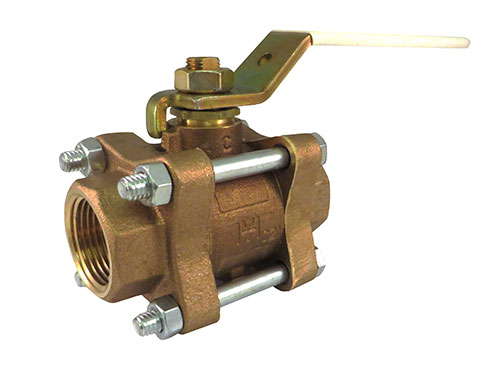

- Three-Piece Low Lead Bronze Ball Valve, 600 WOG, Threaded Ends
- Handles- The Insulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
- Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
- Low Lead Valve For Potable Water
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Description
| Material | Lead Free Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG |
| End Connection | Threaded |
| Body Style | Three-Piece |
| Seat Material | RPTFE |
| Port | Full |
| Ball | Stainless Steel |
| Operator | Lever Handle |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
