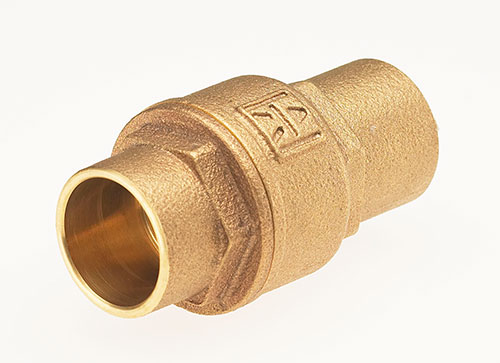

UP947
- Low Lead Bronze Check Valve, 250 WOG, Solder Ends
- Low Lead Valve For Potable Water
- Non-Shock
- Silent Closing
- Brass Disc 1/4″ – 1 1/2″
- Bronze Disc 2″ – 3″
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Product Videos
![alterna](https://www.hammondvalve.com/wp-content/uploads/images/logos/ultrapure-by-hv-logo-registered_4-color-cmyk.jpg?aec3d4&aec3d4)
Description
Valve Type | Check Valve |
---|---|
Material | Lead Free Bronze |
ANSI/Pressure Rating | 250 WOG |
End Connection | Solder |
Body Style | Spring Loaded Lift |
Seat Material | Bronze |
Disc Material | PTFE |
Product Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
