UP640

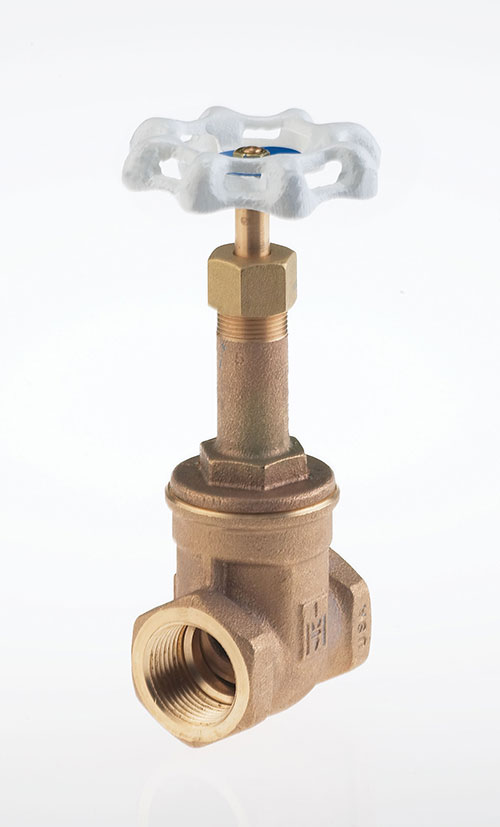

- Low Lead Bronze Gate Valve, 300 WOG, Threaded Ends
- Conforms to MSS SP-80 , Type 1
- Low Lead Valve For Potable Water
- Gland Packed
- Non-Shock
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Description
| Material | Lead Free Bronze |
|---|---|
| ANSI/Pressure Rating | 300 WOG |
| End Connection | Threaded |
| Stem Type | Rising Stem |
| Bonnet Type | Threaded |
| Seat Material | Bronze |
| Disc Material | Solid Wedge |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Valve Type | Gate Valve |
