6110-00

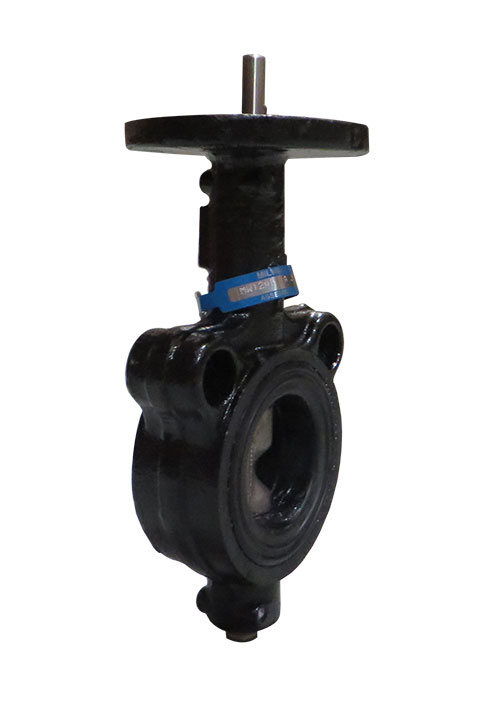

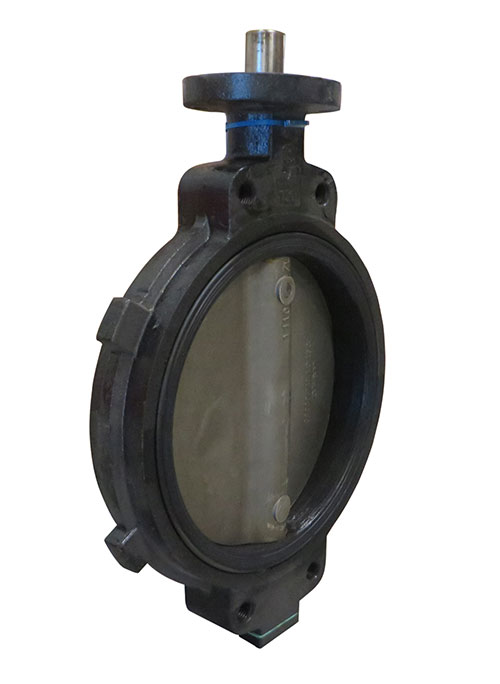

  • Cast Iron Butterfly Valve, Wafer Pattern, Buna-N Liner
  • Bubble-Tight Shut-Off
  • Non-Shock
  • The Wetted Surface of this Product Contacted by Consumable Water Contains Less than One Quarter of One Percent (.25%) of Lead by Weight.
  • Options can be Combined, Please Consult Factory
  • Actuation,Memory Stop,Stem Extension, Chainwheel
  • 2″ – 12″ rated 200 psi, 14″ – 48″ rated 150 psi

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

ANSI/Pressure Rating

200 psi
Body Style

Wafer
Operator

Bare Stem
Material

Cast Iron
Disc Material

Aluminum/Bronze
Liner Material

BUNA-N
Options

None
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24"
Add to quote
Categories: , ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3"
8.35
1.81 x 6 x 10
1
11.25 x 5.875 x 4.125
4"
13.4
2.07 x 7.5 x 11.25
1
12.25 x 8.5 x 4.125
5"
14
2.19 x 8.5 x 12.47
1
14.5 x 10.5625 x 4
6"
18.45
2.19 x 9.5 x 13.56
1
14.5 x 10.5625 x 4
8"
32.68
2.38 x 11.75 x 15.94
1
20.5 x 13.625 x 6.375
10"
50.5
2.69 x 14.25 x 18.44
1
22 x 16.625 x 6.75
