6911-03

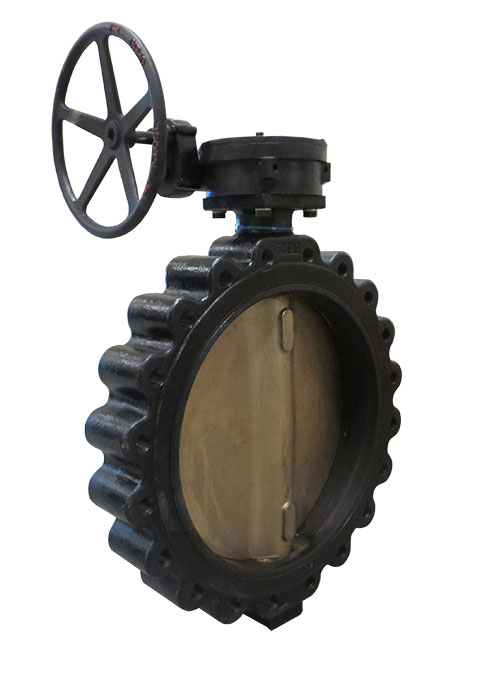

- Ductile Iron Butterfly Valve, Lug Pattern, EPDM Liner
- Bubble-Tight Shut-Off
- Non-Shock
- Options can be Combined, Please Consult Factory
- Actuation,Memory Stop,Stem Extension, Chainwheel
- 2″ – 12″ rated 200 psi, 14″ – 48″ rated 150 psi
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Description
| ANSI/Pressure Rating | 200 psi |
|---|---|
| Body Style | Lug |
| Operator | Gear Operator |
| Material | Ductile Iron |
| Disc Material | Aluminum/Bronze |
| Liner Material | EPDM |
| Options | Epoxy Coated Body |
| Product Size | 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24", 30", 36", 42", 48" |
