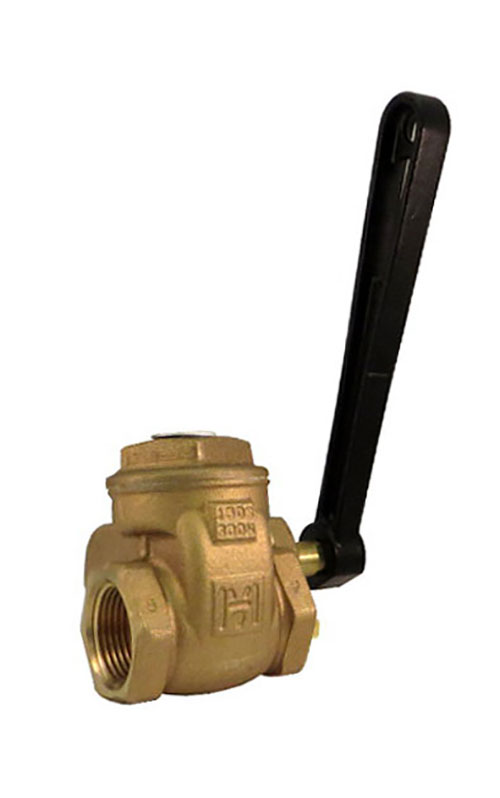

IB610

  • Bronze Gate Valve, 150 SWP – 300 WOG, Threaded Ends
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock
  • Quick Opening

Product Documents

IOMs

Spec Sheets

Description

ANSI/Pressure Rating

150 SWP – 300 WOG
Material

Bronze
End Connection

Threaded
Stem Type

Sliding Stem
Seat Material

Bronze
Disc Material

Double
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Valve Type

Gate Valve
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
1.54
10
9 x 9 x 2.125
3/4"
2.14
6
1"
3.36
2.5 x 1 x 7
6
10.5 x 10 x 3
1-1/4"
4.48
2.88 x 1.25 x 8.19
4
11 x 8.25 x 3
1-1/2"
6.22
3.19 x 1.5 x 10.5
4
19.4375 x 9 x 3.875
2"
9.78
3.75 x 2 x 10.5
2
13.565 x 8.9375 x 4.8125
2-1/2"
13.26
4.25 x 2.5 x 11.5
2
3"
46
4.75 x 3 x 11.5
1
8.5 x 8.5 x 4.125
4"
41.3
1
10.5625 x 8.3125 x 13
