HP1WSS4213

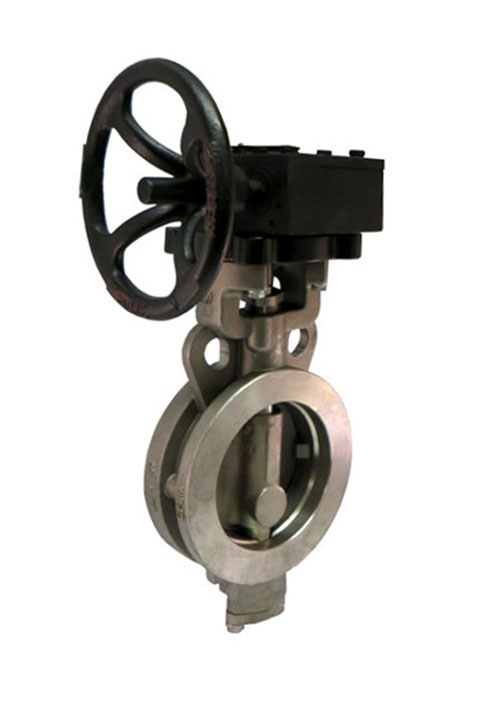

  • High Performance Butterfly Valve, CF8M Stainless Steel Body. Wafer Style, RPTFE Seat

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

ANSI Class

150
Body Style

Wafer
Material

Stainless Steel CF8M
Disc Material

Stainless Steel CF8M
Stem Material

Stainless Steel 17-4
Seat Material

RPTFE
Stem Packing

PTFE
Operator

Gear Operator
Options

None
Product Size

3", 4", 5", 6", 8", 10", 12", 14", 16", 18"
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
4"
28.26
2.13 x 8.76 x 14.25
1
6"
64
2.25 x 8.62 x 18.69
1
8"
93
2.63 x 10.5 x 21.67
1
10"
112.8
2.81 x 12.88 x 22.06
1
12"
188
3.19 x 15 x 29.27
1
14"
280
3.63 x 16.25 x 31.74
1
16"
368
4 x 18.5 x 35.96
1
