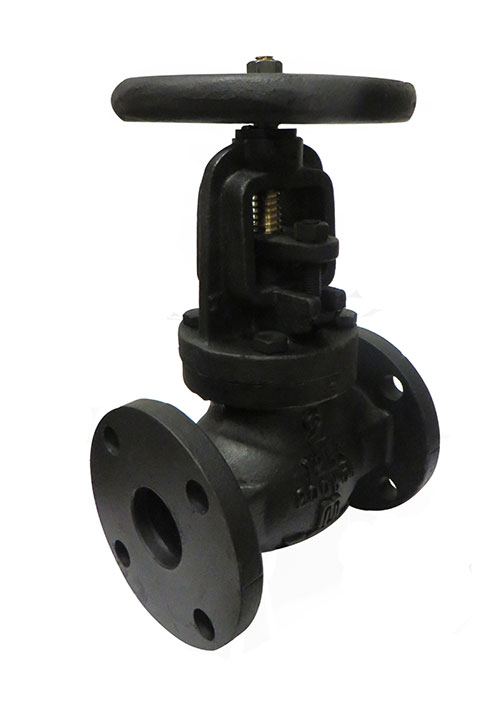

IR116

  • Cast Iron Globe Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-85, Type 1
  • Not Intended for Use in Potable Water
  • IBBM
  • Non-Shock
  • Solid Disc
  • Tapping
  • Bypass with Globe Valve

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Cast Iron

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Flanged

Bonnet Type

Bolted

Seat Material

Bronze

Disc Material

Bronze

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10"

Valve Type

Globe Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
35
8 x 2 x 11.94
1
2-1/2"
47
8.5 x 2.5 x 12.81
1
3"
58.884
9.5 x 3 x 13.63
1
4"
93
11.5 x 4 x 14.56
1
5"
148
13 x 5 x 17.75
1
6"
175
14 x 6 x 19.69
1
8"
315
19.5 x 8 x 22.69
1
