IR1126-HI

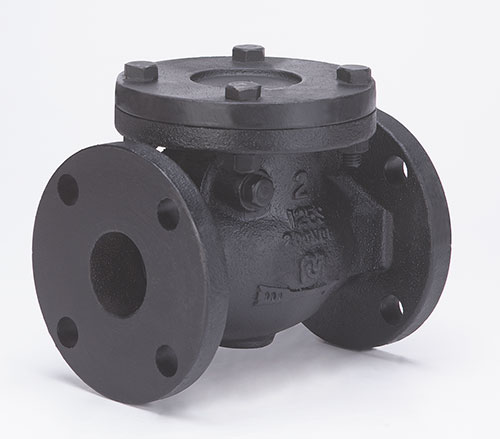

  • Cast Iron Check Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-71 , Type 1
  • Non-Shock
  • 125 SWP (Fluid Pressure to 450° F or 232° C)
  • 200 WOG (200 psi Non-Shock, -20° F to 150° F, or -29° C to 66° C)

Product Documents

IOMs

Spec Sheets

3D CAD Files

alterna

Description

Valve Type

Check Valve

Material

Cast Iron

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Flanged

Body Style

Horizontal Swing

Seat Material

Iron

Disc Material

Solid

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
30
8 x 2 x 4.56
1
2-1/2"
51.1
8 x 2.5 x 5.38
1
3"
46.46
9.5 x 3 x 5.56
1
4"
84
11.5 x 4 x 6.69
1
5"
0
13 x 5 x 7.75
1
6"
156
14 x 6 x 9.5
1
8"
261
19.5 x 8 x 10.38
1
10"
396
24.5 x 10 x 12
1
