IR1124

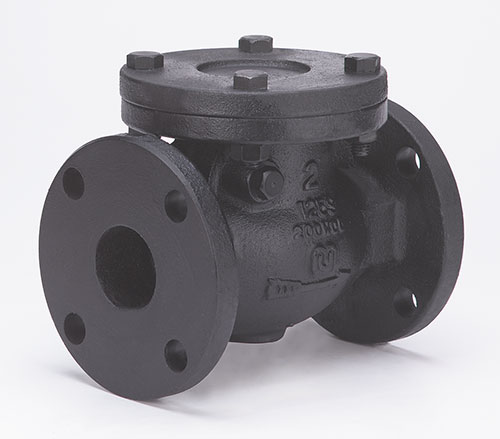

  • Cast Iron Check Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-71 , Type 1
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Cast Iron

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Flanged

Body Style

Horizontal Swing

Seat Material

Bronze

Disc Material

Solid

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
25
8 x 2 x 3.9375
1
2-1/2"
37.856
8.5 x 2.5 x 4.5
1
3"
46.73
9.5 x 3 x 5.125
1
4"
82
11.5 x 4 x 6.125
1
5"
121
13 x 5 x 6.8125
1
6"
159
14 x 6 x 8
1
8"
258
19.5 x 8 x 9.4375
1
10"
445
24.5 x 10 x 12.0625
1
12"
636
27.5 x 12 x 16.125
1
