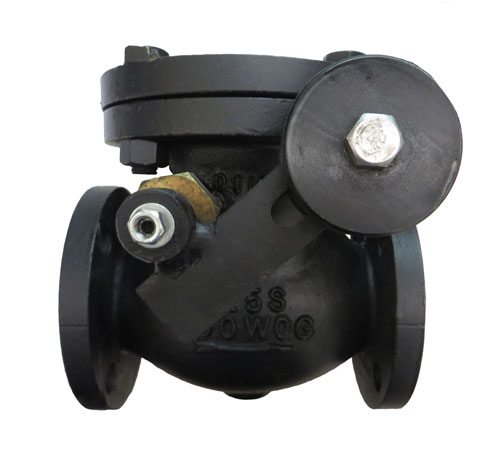

IR1124-LW

  • Cast Iron Check Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-71 , Type 1
  • Non-Shock
  • Lever and Weight

Product Documents

IOMs

Spec Sheets

Description

Valve Type

Check Valve

Material

Cast Iron

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Flanged

Body Style

Horizontal Swing W/Lever and Weight

Seat Material

Bronze

Disc Material

Solid

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
0
8 x 2 x 4.56
1
2-1/2"
0
8.5 x 2.5 x 5.38
1
3"
0
9.5 x 3 x 5.56
1
4"
87
11.5 x 4 x 6.69
1
6"
174
14 x 6 x 9.5
1
8"
0
19.5 x 8 x 10.38
1
10"
0
24.5 x 10 x 12
1
12"
699
27.5 x 12 x 13.5
1
