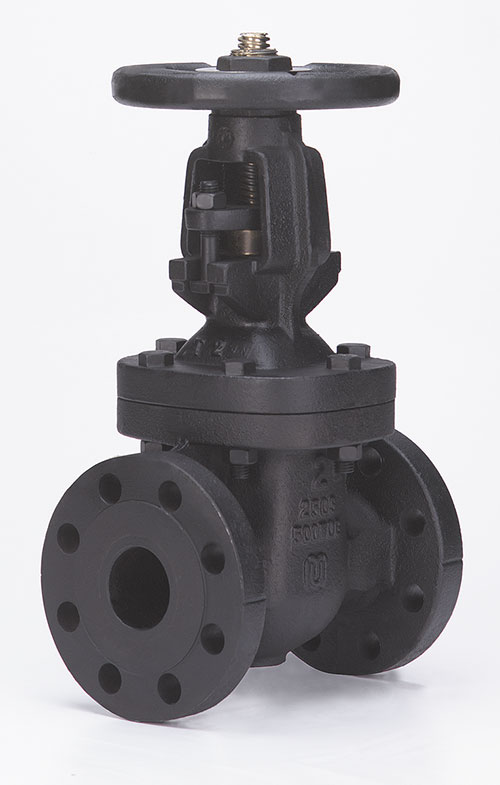

IR330-HI

  • Cast Iron Gate Valve, 250 SWP – 500 WOG, Flanged Ends
  • Conforms to MSS SP-70
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Cast Iron
ANSI/Pressure Rating

250 SWP – 500 WOG
End Connection

Flanged
Stem Type

OS&Y
Bonnet Type

Bolted
Seat Material

Bronze
Disc Material

Solid Wedge
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Valve Type

Gate Valve
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
51.24
8.5 x 2 x 15
1
2-1/2"
70
9.5 x 2.5 x 16.88
1
3"
101.5
11.13 x 3 x 19.38
1
4"
166
12 x 4 x 23.63
1
5"
227
15 x 5 x 27.75
1
6"
288
15.88 x 6 x 32.38
1
8"
0
16.5 x 8 x 40.5
1
10"
0
18 x 10 x 49
1
12"
0
19.75 x 12 x 56.88
1
