IR1140-UL

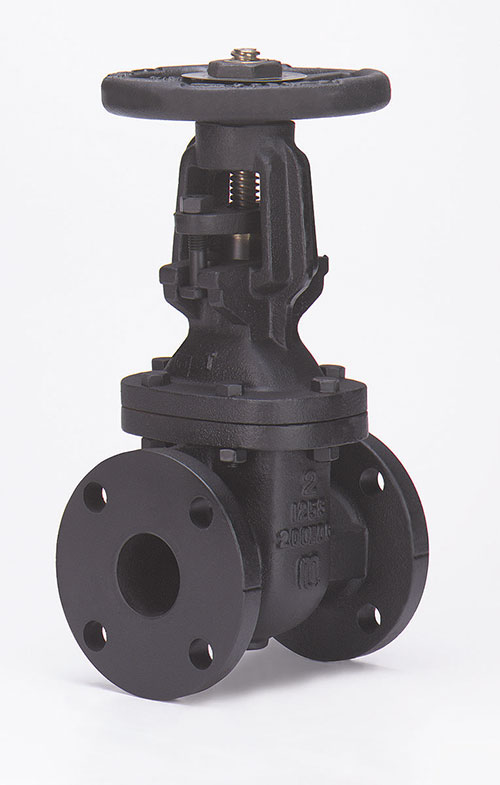

  • Cast Iron Gate Valve, 175 WOG – UL Listed, Flanged Ends
  • UL/FM
  • N.Y.C.B.S.A.

Product Documents

IOMs

Spec Sheets

Description

Material

Cast Iron

ANSI/Pressure Rating

175 WOG – UL Listed

End Connection

Flanged

Stem Type

OS&Y

Bonnet Type

Bolted

Seat Material

Bronze

Product Size

2", 2-1/2", 3", 4", 5", 6", 8"

Valve Type

Gate Valve

Add to quote

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2-1/2"
49.528
7.5 x 2.5 x 16
1
3"
59
8 x 3 x 18.5
1
4"
104
9 x 4 x 22.25
1
6"
0
10.5 x 6 x 30.5
1
8"
0
11.5 x 8 x 38.38
1
