IR1138

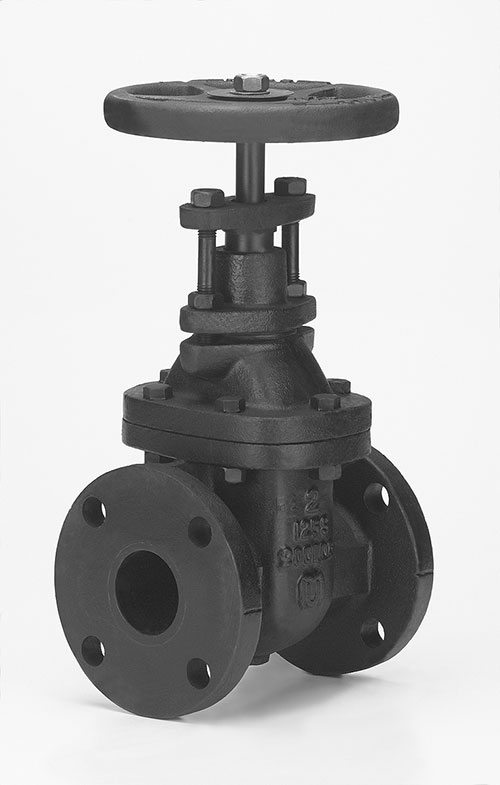

  • Cast Iron Gate Valve, 125 SWP – 200 WOG, Flanged Ends
  • Conforms to MSS SP-70 , Type 1
  • IBBM
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Cast Iron

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Flanged

Stem Type

Non-Rising

Bonnet Type

Bolted

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
36
7 x 2 x 12
1
2-1/2"
47.612
7.5 x 2.5 x 13.25
1
3"
55.328
8 x 3 x 13.5
1
4"
103
9 x 4 x 17
1
5"
0
10 x 5 x 18
1
6"
176
10.5 x 6 x 22
1
8"
0
11.5 x 8 x 26.5
1
10"
0
1
