8911

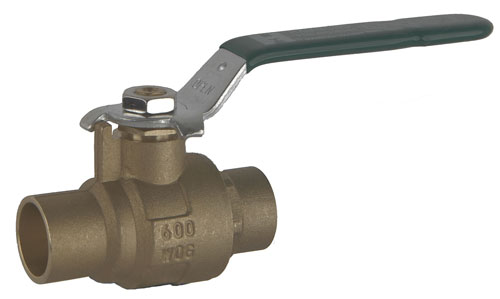

  • Two-Piece Brass Ball Valve, 600 WOG, Solder Ends
  • Handles- The Inulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Not Intended for Use in Potable Water
  • The Insulator TIH Handle Available- Must be Installed in the Field
  • Not Intended for Use in Potable Water
  • 600 WOG (1/4″ – 3″)
  • 400 WOG (4″)
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Brass

ANSI/Pressure Rating

600 WOG

End Connection

Solder

Body Style

Two – Piece

Seat Material

RPTFE

Port

Full

Ball

Chrome Plated

Operator

Lever Handle

Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.38
2.28 x 1 x 1.46
10
6.1811 x 4.8819 x 2.4409
1/2"
0.38
2.28 x 1 x 1.46
10
6.1811 x 4.8819 x 2.4409
3/4"
0.76
3.1 x 1.26 x 1.93
6
6.6142 x 5.1969 x 2.9528
3/4"
0.76
3.1 x 1.26 x 1.93
6
6.6142 x 5.1969 x 2.9528
1"
1.1
3.56 x 1.5 x 2.1
6
7.4409 x 6.4173 x 3.3465
1"
1.1
3.56 x 1.5 x 2.1
6
7.4409 x 6.4173 x 3.3465
1 1/4"
1.6
4.13 x 1.76 x 2.33
4
8.4252 x 5.0787 x 4.0158
1-1/4"
1.6
4.13 x 1.76 x 2.33
4
8.4252 x 5.0787 x 4.0158
1 1/2"
2.3
4.64 x 2 x 2.52
4
9.3307 x 5.8661 x 4.0158
1-1/2"
2.3
4.64 x 2 x 2.52
4
9.3307 x 5.8661 x 4.0158
2"
0.42
5.75 x 2.5 x 2.96
2
11.5354 x 5.748 x 3.1496
2"
0.42
5.75 x 2.5 x 2.96
2
11.5354 x 5.748 x 3.1496
2 1/2"
9.92
7.25 x 2.98 x 3.94
1
11.9685 x 6.4173 x 4.6063
2-1/2"
9.92
7.25 x 2.98 x 3.94
1
11.9685 x 6.4173 x 4.6063
3"
14.48
8.25 x 3.45 x 4.37
1
12.6378 x 7.126 x 5.315
3"
14.48
8.25 x 3.45 x 4.37
1
12.6378 x 7.126 x 5.315
