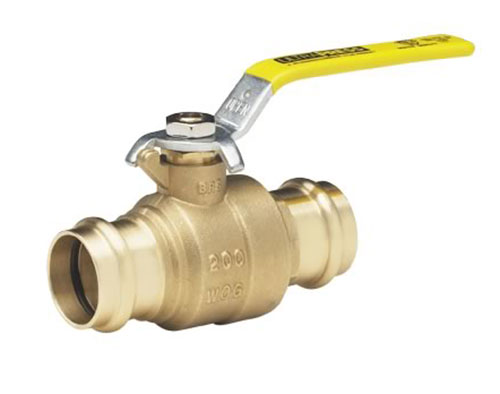

BA-480B

  • Two-Piece Brass Ball Valve, Press x Press Ends
  • 250 psig @ 250 Degrees F (1/2″ – 2″)
  • 200 psig @ 250 Degrees F   (2 1/2″ – 3″)
  • Handles- The Insulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Not Intended for Use in Potable Water

Product Documents

IOMs

Certifications

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Brass
ANSI/Pressure Rating

200 psig, 250 psig
End Connection

Press X Press
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.44
5 x 2 x 1
10
6.6929 x 6.2205 x 2.4409
3/4"
0.82
6 x 3 x 1.5
6
7.7953 x 5 x 2.9528
1"
1.16
6.5 x 3.25 x 1.5
6
8.8583 x 6.378 x 3.3465
1 1/4"
1.76
7.75 x 3.75 x 2.25
4
10.7087 x 5.1181 x 4.0158
1 1/2"
2.68
8 x 4 x 2.5
4
13.1102 x 5.8661 x 4.1339
2"
5.04
10.5 x 5 x 3.5
2
15.2756 x 5.7874 x 3.3465
2 1/2"
12.335
14 x 6.75 x 4.75
1
13.565 x 8.9375 x 4.8125
3"
18.435
14.5 x 7 x 5
1
16 x 8.6875 x 4.9375
