8614

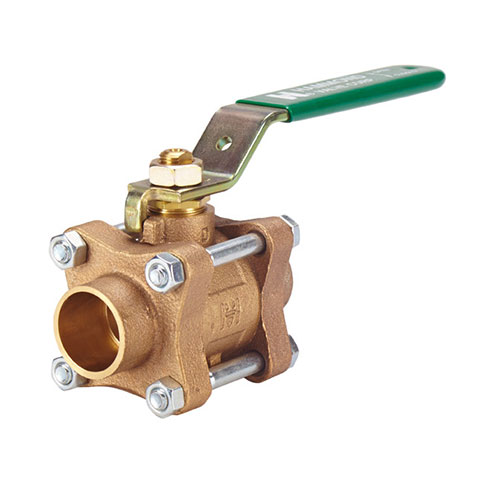

  • Three-Piece Bronze Ball Valve, 600 WOG, Solder Ends
  • Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Not Intended for Use in Potable Water
  • 3″ is Standard Port
  • TIH Handle Available- Must be Installed in the Field
  • Locking Handle is Standard on 2 1/2″ and 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Bronze
ANSI/Pressure Rating

600 WOG
End Connection

Solder
Body Style

Three-Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
1.08
3.03 x 0.5 x 1.65
8
3/4"
2.155
3.56 x 0.75 x 2.24
18
1"
3.04
3.82 x 1 x 2.65
6
1-1/4"
4.705
5.06 x 1 x 3.03
8
1-1/2"
5.71
4.86 x 1.25 x 2.86
1
2"
9.795
6 x 2 x 3.26
1
2 1/2"
25.53
1
3"
24.795
1
