8604

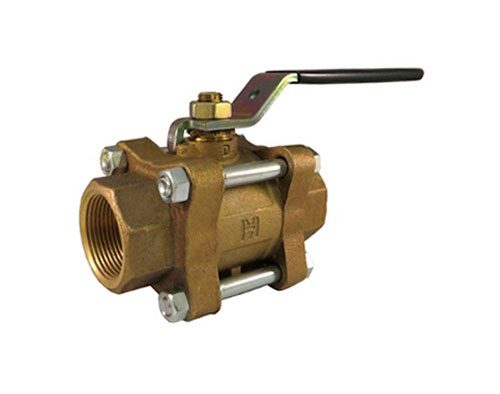

  • Three-Piece Bronze Ball Valve, 600 WOG, Threaded Ends
  • Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Not Intended for Use in Potable Water
  • 3″ is Standard Port
  • Locking Handle is Standard on 2 1/2″ and 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Bronze
ANSI/Pressure Rating

600 WOG – 150 SWP
End Connection

Threaded
Body Style

Three-Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0
3.03 x 0.5 x 1.65
1
3/8"
0
3.03 x 0.5 x 1.65
1
1/2"
1.09
2.8 x 0.5 x 1.95
1
3/4"
2.23
3.44 x 0.75 x 2.26
6
1"
3.23
3.87 x 1 x 2.44
5
1-1/4"
5.23
4.75 x 1.25 x 2.8
2
1-1/2"
6.59
5.25 x 1.5 x 3.12
1
2"
10.47
6.1 x 2 x 3.58
1
2 1/2"
28.975
1
3"
25.61
1
