8513

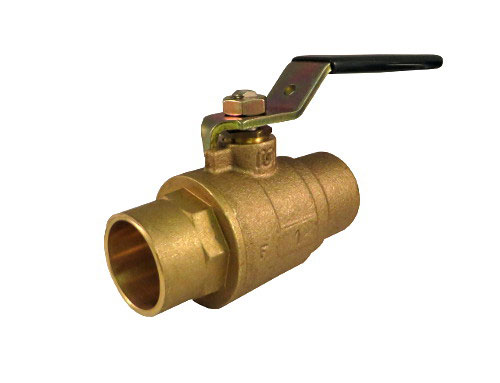

  • Two-Piece Bronze Ball Valve, 600 WOG, Solder Ends
  • Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Not Intended for Use in Potable Water
  • The Insulator TIH Handle Available- Must be Installed in the Field

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

600 WOG

End Connection

Solder

Body Style

Two – Piece

Seat Material

RPTFE

Port

Standard

Ball

Stainless Steel

Operator

Lever Handle

Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/8"
0.45
2.1 x 0.88 x 1.8
10
6.625 x 5.1875 x 2.8125
1/2"
0.65
2.39 x 1 x 1.89
10
6.625 x 5.1875 x 2.8125
3/4"
0.955
3.05 x 1.26 x 2.13
6
6.625 x 5.1875 x 2.8125
1"
1.385
3.71 x 1.38 x 2.29
6
7.5 x 5.5625 x 3.25
1 1/4"
2.5
4.54 x 1.56 x 2.67
6
9.25 x 6.75 x 3.875
1 1/2"
3.235
5 x 1.81 x 2.85
4
10.625 x 6.75 x 3.875
2"
5.195
6.25 x 2.06 x 3.02
2
10.625 x 6.75 x 3.875
2 1/2"
10
7.34 x 2.5 x 3.47
1
3"
16.065
8.16 x 2.81 x 3.88
1
5.625 x 4.875 x 8.5
