8501M

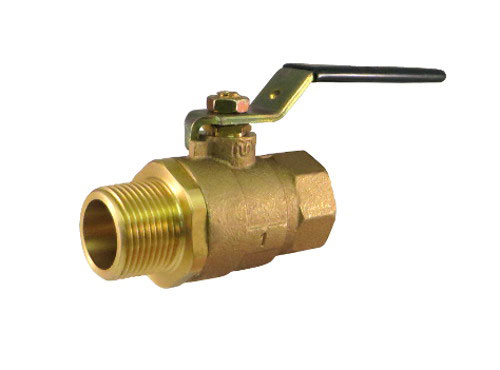

  • Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, FNPT x MNPT Ends
  • Not Intended for Use in Potable Water

Product Documents

IOMs

Spec Sheets

Product Videos

Description

Material

Bronze
ANSI/Pressure Rating

600 WOG – 150 SWP
End Connection

FNPT x MNPT
Body Style

Two – Piece
Seat Material

RPTFE
Port

Standard
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.57
2.5 x 0.38 x 2.08
10
6.625 x 5.1875 x 2.8125
3/8"
0.56
2.5 x 0.38 x 2.25
12
6.625 x 5.1875 x 2.8125
1/2"
0.645
2.82 x 0.5 x 2.66
8
6.625 x 5.1875 x 2.8125
3/4"
1.075
3.03 x 0.76 x 2.08
6
6.625 x 5.1875 x 2.8125
1"
1.525
3.63 x 0.88 x 2.25
6
7.5 x 5.5625 x 3.25
