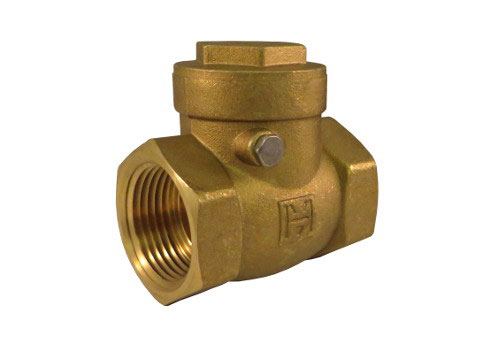

- Brass Check Valve 200 WOG Threaded
Description
| Material | Brass |
|---|---|
| Product Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
| ANSI/Pressure Rating | 200 WOG |
| End Connection | Threaded |
| Body Style | Swing |
| Seat Material | Integral |
| Port | Integral |
| Disc Material | Brass |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
3/8"
0.36
1.82 x 0 x 1.35
10
3/8"
0.36
1.82 x 0 x 1.35
10
6.378 x 4.1732 x 2.0866
1/2"
0.38
1.86 x 0 x 1.35
10
1/2"
0.38
1.86 x 0 x 1.35
10
6.378 x 4.1732 x 2.0866
3/4"
0.52
2.11 x 0 x 1.53
10
3/4"
0.52
2.11 x 0 x 1.53
10
7.0079 x 4.8819 x 2.5591
1"
0.84
2.52 x 0 x 1.74
10
1"
0.84
2.52 x 0 x 1.74
10
8.5433 x 5.6693 x 2.874
1-1/4"
1.24
2.72 x 0 x 1.99
5
1-1/4"
1.24
2.72 x 0 x 1.99
5
6.6535 x 5.5906 x 2.9921
1-1/2"
1.92
3.23 x 0 x 2.28
5
1-1/2"
1.92
3.23 x 0 x 2.28
5
7.5591 x 6.378 x 3.4646
2"
3
3.7 x 0 x 2.48
2
2"
3
3.7 x 0 x 2.48
2
8.3465 x 4.2126 x 3.0709
2-1/2"
5.16
5.2 x 0 x 3.11
1
2-1/2"
5.16
5.2 x 0 x 3.11
1
5.7087 x 5.5906 x 3.9764
3"
7.5
5.83 x 0 x 3.8
1
3"
7.5
5.83 x 0 x 3.8
1
6.6929 x 6.2598 x 4.4488
4"
11.54
1
4"
11.54
1
7.4803 x 7.2441 x 5.4331
