8623

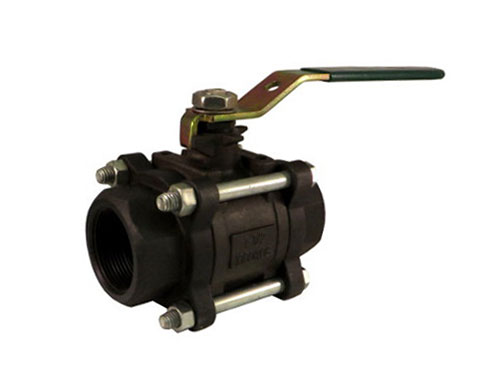

  • Three Piece Carbon Steel Ball Valve, 1000 WOG, NPT Female Ends

Product Documents

IOMs

Spec Sheets

Description

Body Style

Three-Piece

Material

Carbon Steel

Ball

Stainless Steel

End Connection

NPT Female

Port

Full

Seat Material

Virgin PTFE

Operator

Non-Locking Handle

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

ANSI/Pressure Rating

1000 WOG

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.02
4
3/8"
0
4
1/2"
1.55
8
10.25 x 7.375 x 4.0625
3/4"
2.5
1
10.25 x 7.375 x 4.0625
1"
3.6
1
10.25 x 7.375 x 4.0625
1-1/4"
5.22
2
10.3125 x 4.875 x 3
1-1/2"
7.14
1
10.3125 x 4.875 x 3
2"
12.3
1
10.25 x 7.375 x 4.0625
