8423

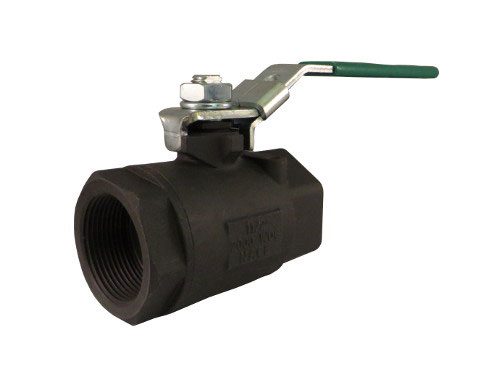

  • Two-Piece Carbon Steel Ball Valve, 2000 WOG (1/4″ – 1″), 1500 WOG (1 1/4″ – 2″), NXT Standard Seat



Available OPTIONS

  • Extension Stem (2″)
  • Assembled Dry
  • Grounded Ball
  • Grounded Stem
  • Vented Ball

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Body Style

Two – Piece
Material

Carbon Steel
Ball

Stainless Steel
End Connection

NPT Female
Port

Reduced
Seat Material

NXT
Operator

Non-Locking Handle
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
ANSI/Pressure Rating

2000 WOG
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.7
10
8.6 x 6.2 x 2.6
3/8"
0.48
10
8.6 x 6.2 x 2.6
1/2"
0.068
10
8.6 x 6.2 x 2.6
3/4"
1.34
10
10.5 x 8 x 4.3
1"
1.94
10
10.5 x 8 x 4.3
1-1/4"
2.68
5
10.5 x 8 x 4.3
1-1/2"
3.78
5
10.5 x 8 x 4.3
2"
5.86
4
10.8 x 5.6 x 3.2
