606

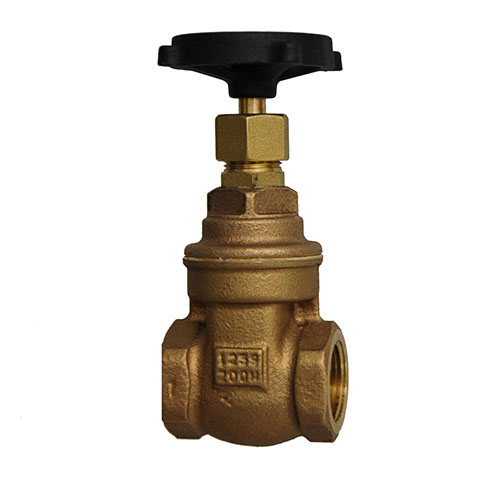

  • Bronze Gate Valve 125 SWP – 200 WOG Threaded

Product Documents

Spec Sheets

Description

Material

Bronze
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
ANSI/Pressure Rating

125 SWP – 200 WOG
End Connection

Threaded
Stem Type

Non-Rising Stem
Seat Material

Integral
Port

Integral
Disc Material

Solid Wedge
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.76
1.75 x 0.25 x 3.0625
16
1/4"
0.76
1.75 x 0.25 x 3.0625
16
9 x 9 x 2.125
3/8"
0.78
1.8125 x 0.375 x 3.0625
10
9 x 9 x 2.125
3/8"
0.78
1.8125 x 0.375 x 3.0625
10
1/2"
0.78
2 x 0.5 x 3.0625
10
10.5 x 6 x 3.25
1/2"
0.78
2 x 0.5 x 3.0625
10
3/4"
1.48
2.125 x 0.75 x 3.9375
6
10.5 x 6 x 3.25
3/4"
1.48
2.125 x 0.75 x 3.9375
6
1"
2.08
2.5625 x 11 x 4.25
6
1"
2.08
2.5625 x 1 x 4.25
6
10 x 7.5 x 2.5
1-1/4"
3
2.7813 x 1.25 x 5.1875
4
1-1/4"
3
2.7813 x 1.25 x 5.1875
4
9.5 x 7.5 x 3
1-1/2"
3.78
2.8125 x 1.5 x 5.625
4
1-1/2"
3.78
2.8125 x 1.5 x 5.625
4
11 x 8.25 x 3
2"
6.32
3.3125 x 2 x 6.75
2
2"
6.32
3.3125 x 2 x 6.75
2
9.5 x 7.5 x 3
2-1/2"
9.94
4.8125 x 2.5 x 9.125
1
2-1/2"
9.94
4.8125 x 2.5 x 9.125
1
16 x 5.5 x 5.5
3"
14.44
4.625 x 3 x 10.375
1
3"
14.44
4.625 x 3 x 10.375
1
16 x 5.5 x 5.5
