IB454T

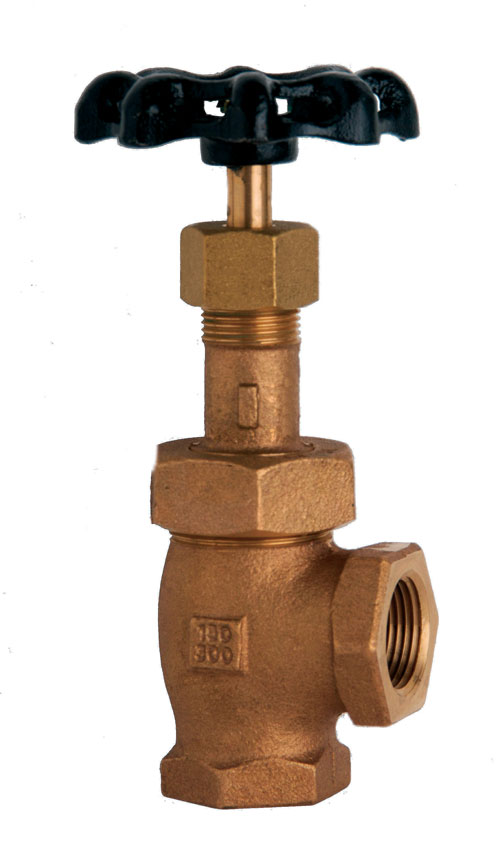

  • Bronze Globe Angle Valve, 150 SWP – 300 WOG, Threaded Ends
  • Conforms to MSS SP-80, Type 2
  • Not Intended for Use in Potable Water
  • Gland packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

150 SWP – 300 WOG

End Connection

Threaded

Stem Type

Rising Stem

Body Style

Angle

Bonnet Type

Union

Seat Material

PTFE

Disc Material

PTFE

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Valve Type

Globe Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.78
1.06 x 0.25 x 3.94
10
9 x 9 x 2.125
3/8"
0.51
1.19 x 0.375 x 4.25
24
9 x 9 x 2.125
1/2"
1.48
1.19 x 0.5 x 5.13
10
10.5 x 10 x 3
3/4"
1.965
1.44 x 0.75 x 5.19
6
10 x 7.5 x 2.5
1"
3.52
1.75 x 1 x 6.56
6
19.4375 x 9 x 3.875
1-1/4"
5.32
2.06 x 1.25 x 6.25
4
13.565 x 8.9375 x 4.8125
1-1/2"
7.08
2.25 x 1.5 x 7.63
5
13.565 x 8.9375 x 4.8125
2"
11.54
2.75 x 2 x 8.88
2
13.565 x 8.9375 x 4.8125
