IB444

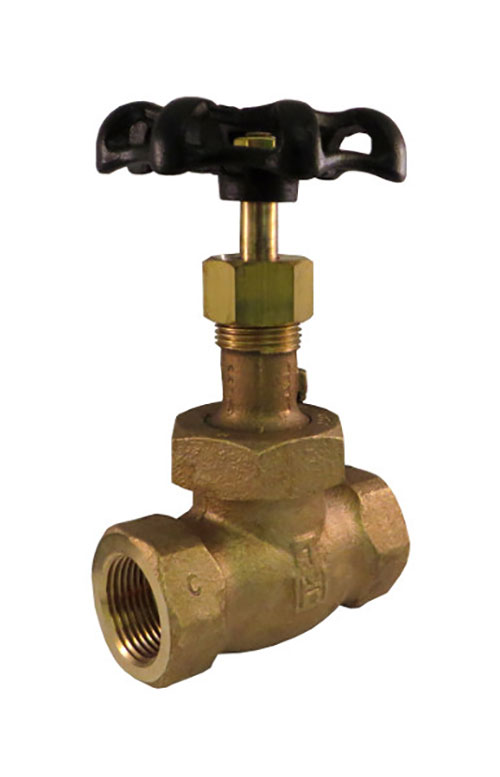

  • Bronze Globe Valve, 300 SWP – 1000 WOG, Threaded Ends
  • Conforms to MSS SP-80
  • Not Intended for Use in Potable Water
  • Gland packed
  • Non-Shock
  • 300 SWP @ 550° F, 1000 WOG @ 150° F

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

300 SWP – 1000 WOG

End Connection

Threaded

Stem Type

Rising Stem

Body Style

Straight

Bonnet Type

Union

Seat Material

Stainless Steel

Disc Material

Stainless Steel Seat Ring and Disc

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Valve Type

Globe Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1
2.13 x 0.25 x 4.38
10
9 x 9 x 2.125
3/8"
1.15
2.38 x 0.375 x 4.44
24
20.875 x 10.1875 x 2.25
1/2"
1.44
2.75 x 0.5 x 4.5
10
10 x 7.5 x 2.5
3/4"
2.22
3.19 x 0.75 x 5.13
6
11.5 x 9 x 3
1"
3.04
3.63 x 1 x 5.38
6
11.5 x 9 x 3
1-1/4"
4.58
4.13 x 1.25 x 6.25
4
12.625 x 11.1875 x 4.3125
1-1/2"
6.88
4.75 x 1.5 x 7.38
4
13.565 x 8.9375 x 4.8125
2"
9.46
5.13 x 2 x 8.38
2
13.565 x 8.9375 x 4.8125
