IB434

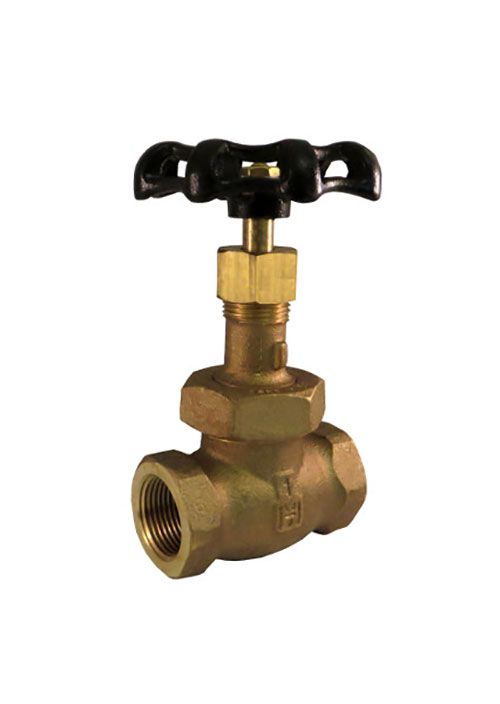

  • Bronze Globe Valve, 200 SWP – 400 WOG, Threaded Ends
  • Conforms to MSS SP-80
  • Not Intended for Use in Potable Water
  • Gland packed
  • Non-Shock
  • 200 SWP @ 550° F, 400 WOG @ 150° F
  • Special Hardened Stainless Steel Seat Ring and Disc

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

200 SWP – 400 WOG

End Connection

Threaded

Stem Type

Rising Stem

Body Style

Straight

Bonnet Type

Union

Seat Material

Stainless Steel

Disc Material

Stainless Steel Seat Ring and Disc

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Valve Type

Globe Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.32
2.5 x 0.5 x 4.5
10
10 x 7.5 x 2.5
3/8"
1.01
2.13 x 0.25 x 4.38
26
9 x 9 x 2.125
1/2"
2.14
2.94 x 0.75 x 5.13
6
11.5 x 9 x 3
3/4"
1.16
2.38 x 0.375 x 4.44
10
20.875 x 10.1875 x 2.25
1"
2.92
3.38 x 1 x 5.25
6
11.5 x 9 x 3
1-1/4"
4.48
3.88 x 1.25 x 6.19
4
12.625 x 11.1875 x 4.3125
1-1/2"
6.65
4.5 x 1.5 x 7.25
4
13.565 x 8.9375 x 4.8125
2"
9.12
4.88 x 2 x 8.19
2
13.565 x 8.9375 x 4.8125
