568

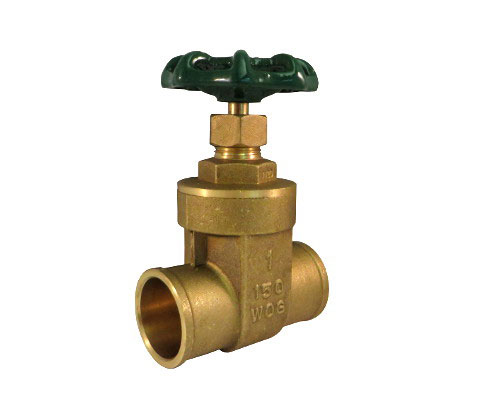

  • Brass Gate Valve 150 WOG Solder

Product Documents

Spec Sheets

Description

Material

Brass
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
ANSI/Pressure Rating

150 WOG
End Connection

Solder
Stem Type

Non-Rising Stem
Seat Material

Integral
Port

Integral
Disc Material

Solid Wedge
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.56
2.9063 x 0.5 x 2.7813
10
1/2"
0.56
2.9063 x 0.5 x 2.7813
10
7.9528 x 7.4803 x 2.1654
3/4"
0.84
3.3125 x 0.75 x 2.3125
5
3/4"
0.84
3.3125 x 0.75 x 2.3125
5
8.5039 x 4.7244 x 2.3622
1"
1.18
3.9375 x 1 x 2.8438
5
1"
1.18
3.9375 x 1 x 2.8438
5
9.2126 x 5.5906 x 2.7559
1-1/4"
1.6
4.3438 x 1.25 x 3
5
1-1/4"
1.6
4.3438 x 1.25 x 3
5
10.9843 x 6.6929 x 3.1496
1-1/2"
2.16
4.9375 x 1.5 x 3.2188
4
1-1/2"
2.16
4.9375 x 1.5 x 3.2188
4
10.1969 x 6.5748 x 3.2677
2"
3.16
6.0313 x 2 x 3.9688
2
2"
3.16
6.0313 x 2 x 3.9688
2
7.5591 x 6.2992 x 4.0551
