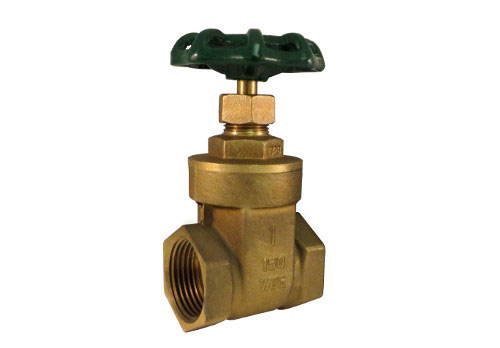

  • Brass Gate Valve 150 WOG Threaded

Product Documents

Spec Sheets

Description

Material

Brass
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
ANSI/Pressure Rating

150 WOG
End Connection

Threaded
Stem Type

Non-Rising Stem
Seat Material

Integral
Port

Integral
Disc Material

Solid Wedge
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.62
2.8438 x 0.25 x 1.625
10
1/4"
0.62
2.8438 x 0.25 x 1.625
10
7.2441 x 8.3071 x 2.1654
3/8"
0.6
2.8438 x 0.375 x 1.625
10
7.2441 x 8.3071 x 2.1654
3/8"
0.6
2.8438 x 0.375 x 1.625
10
1/2"
0.62
2.9063 x 0.5 x 1.6875
10
8.3071 x 7.4803 x 2.1654
1/2"
0.62
2.9063 x 0.5 x 1.6875
10
3/4"
0.86
3.3125 x 0.75 x 1.8438
5
8.6614 x 4.7244 x 2.1654
3/4"
0.86
3.3125 x 0.75 x 1.8438
5
1"
1.2
3.9375 x 1 x 2.0625
5
1"
1.2
3.9375 x 1 x 2.0625
5
9.8032 x 5.1181 x 2.4409
1-1/4"
1.72
4.3438 x 1.25 x 2.3438
5
1-1/4"
1.72
4.3438 x 1.25 x 2.3438
5
10.5512 x 6.4961 x 3.1496
1-1/2"
2.28
4.9375 x 1.5 x 2.4375
4
1-1/2"
2.28
4.9375 x 1.5 x 2.4375
4
10 x 6.2992 x 3.1496
2"
3.28
6.0313 x 2 x 2.8438
2
2"
3.28
6.0313 x 2 x 2.8438
2
6.1811 x 7.6772 x 3.3465
2-1/2"
6.28
7.4375 x 2.5 x 3.5
2
2-1/2"
6.28
7.4375 x 2.5 x 3.5
2
3"
8.42
8.625 x 3 x 3.9688
1
3"
8.42
8.625 x 3 x 3.9688
1
4"
13.22
10 x 4 x 4.5625
1
4"
13.22
10 x 4 x 4.5625
1
