IB463

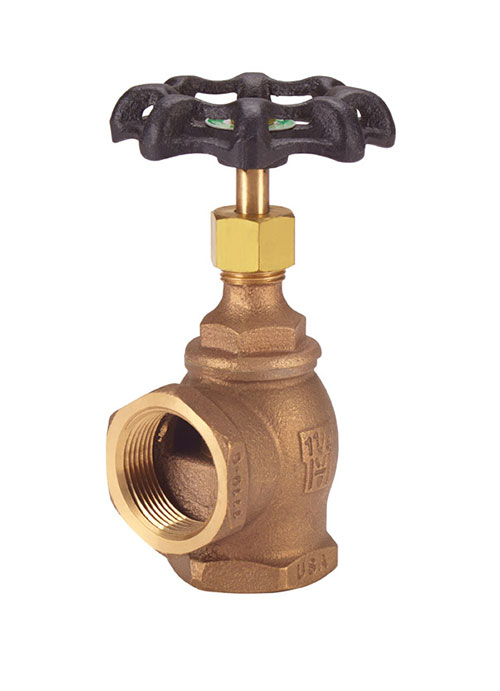

  • Bronze Globe Angle Valve, 125 SWP – 200 WOG, Threaded Ends
  • Conforms to MSS SP-80, Type 1
  • Not Intended for Use in Potable Water
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Threaded

Stem Type

Rising Stem

Body Style

Angle

Bonnet Type

Threaded

Seat Material

Bronze

Disc Material

Bronze

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2"

Valve Type

Globe Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.52
0.75 x 0.25 x 3.06
10
9.125 x 3.9375 x 2.0625
3/8"
0.52
0.91 x 0.375 x 3.19
10
10.3125 x 4.875 x 3
1/2"
0.76
1 x 0.5 x 3.63
10
8.5 x 8.5 x 4.125
3/4"
1.16
1.25 x 0.75 x 3.94
6
9 x 6 x 3
1"
1.7
1.44 x 1 x 4.38
6
9 x 6 x 3
1-1/4"
2.44
1.69 x 1.25 x 5.19
4
9.5 x 7.5 x 3
1-1/2"
3.18
1.81 x 1.5 x 5.75
4
9.5 x 7.5 x 3
2"
4.6
2.19 x 2 x 6.75
2
10.25 x 7.375 x 4.0625
2 1/2"
10.12
3 x 2.5 x 8.63
1
16 x 11.3125 x 3.6875
