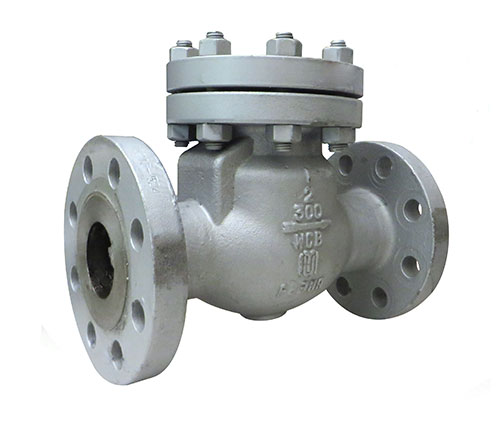

3070CB2

  • Cast Steel Check Valve, 300 Class, Flanged/Raised Face Ends
  • Consult Factory for Optional Material and Trim

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Body Style

Check
Material

Cast Steel
Trim

CR-13 Stem, CR-13 Disc Face, HF(COCR) Seat Face; API Trim # 8
ANSI Class

300
End Connection

Flanged/Raised Face
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
38.5
10.5 x 2 x 7.68
1
2-1/2"
53.9
11.5 x 2.5 x 7
1
3"
72.6
12.5 x 3 x 8.46
1
4"
110
14 x 4 x 10.31
1
6"
215.6
17.5 x 6 x 12.99
1
8"
347.6
21 x 8 x 15.75
1
10"
534.6
24.5 x 10 x 18.31
1
12"
754.6
28 x 12 x 21.65
1
