3060CB2

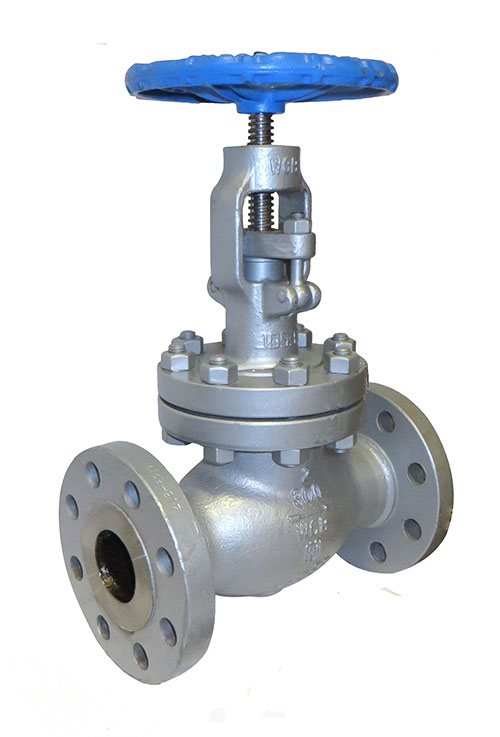

  • Cast Steel Globe Valve, 300 Class, Flanged/Raised Face Ends
  • Chainwheel Operator
  • Electric Actuator
  • Consult Factory for Optional Material and Trim

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Body Style

Globe
Material

Cast Steel
Trim

CR-13 Stem, CR-13 Disc Face, HF(COCR) Seat Face; API Trim # 8
ANSI Class

300
End Connection

Flanged/Raised Face
Product Size

2", 2-1/2", 3", 4", 5", 6", 8"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
51.92
10.5 x 2 x 15.43
1
2-1/2"
78.54
11.5 x 2.5 x 15.63
1
3"
103.62
12.5 x 3 x 18.2
1
4"
161.92
14 x 4 x 21.46
1
6"
319
17.5 x 6 x 28.05
1
8"
565.4
19.5 x 8 x 39.6
1
