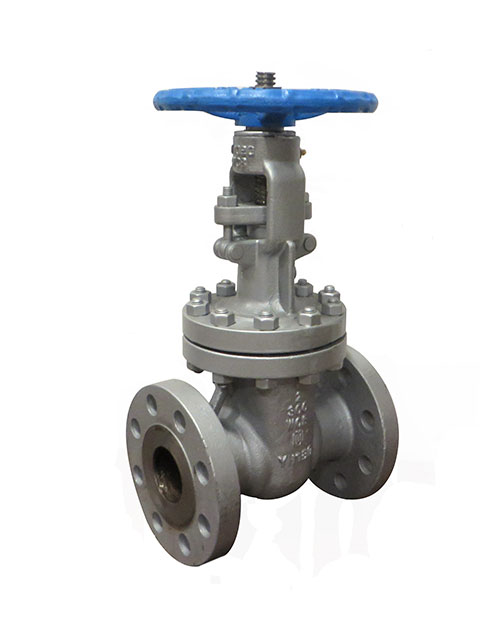

  • Cast Steel Gate Valve, 300 Class, Flanged/Raised Face Ends
  • Chainwheel Operator
  • Electric Actuator
  • Consult Factory for Optional Material and Trim

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Body Style

Gate
Material

Cast Steel
Trim

CR-13 Stem, CR-13 Disc Face, HF(COCR) Seat Face; API Trim # 8
ANSI Class

300
End Connection

Flanged/Raised Face
Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
57.2
8.5 x 2 x 16.25
1
2-1/2"
79.2
9.5 x 2.5 x 17.46
1
3"
105.6
11.13 x 3 x 19.88
1
4"
160.6
12 x 4 x 24.64
1
6"
305.8
16.5 x 8 x 41.94
1
8"
455.4
16.5 x 8 x 41.94
1
10"
684.2
18 x 10 x 49.88
1
12"
939.4
19.75 x 12 x 59.5
1
14"
1355.2
30 x 14 x 68.6
1
16"
0
33 x 16 x 73.2
1
20"
3637
39 x 30 x 87.3
1
