IB423

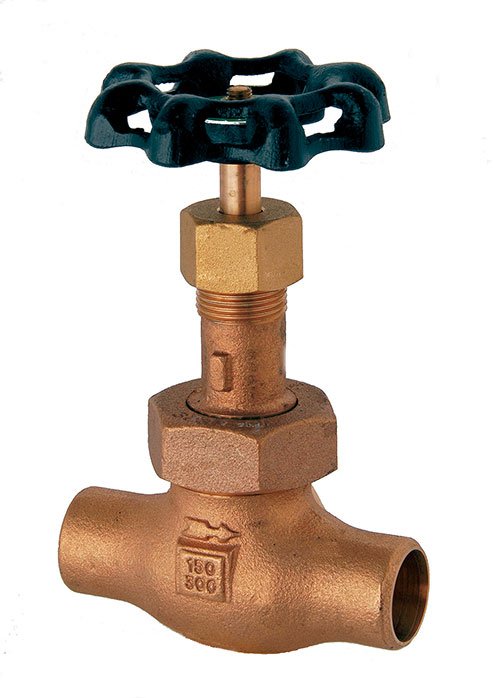

  • Bronze Globe Valve, 150 SWP – 300 WOG, Solder Ends
  • Conforms to MSS SP-80, Type 2
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

150 SWP – 300 WOG

End Connection

Solder

Stem Type

Rising Stem

Body Style

Straight

Bonnet Type

Union

Seat Material

PTFE

Disc Material

TFE

Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Valve Type

Globe Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
1.24
2.75 x 0.5 x 4.5
10
10 x 7.5 x 2.5
3/4"
1.82
3.56 x 0.75 x 5.19
8
16 x 5.5 x 5.5
1"
3.16
4.31 x 1 x 5.5
6
11.5 x 9 x 3
1-1/4"
4.35
5 x 1.25 x 6.25
4
12 x 7 x 3.5
1-1/2"
5.8
5.75 x 1.5 x 7.13
4
13.565 x 8.9375 x 4.8125
2"
12.02
7.06 x 2 x 8.88
2
19.4375 x 9 x 3.875
2 1/2"
19.4
8.19 x 2.5 x 10.63
1
3"
26
9.56 x 3 x 12.13
1
16 x 8.6875 x 4.9375
