1560CB2

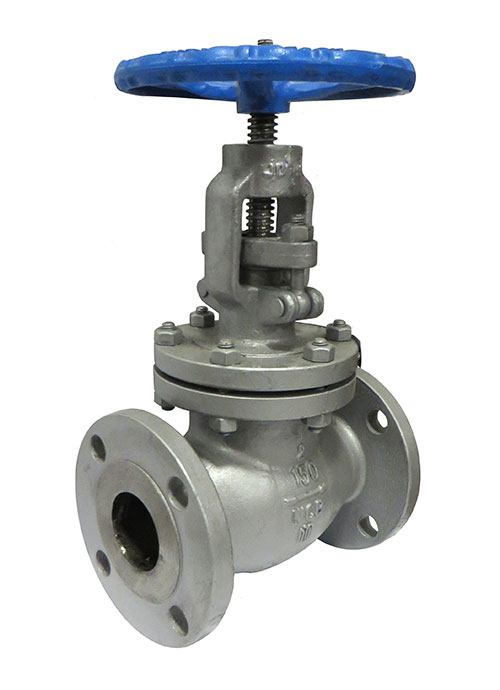

  • Cast Steel Globe Valve, 150 Class, Flanged/Raised Face Ends
  • Chainwheel Operator
  • Electric Actuator
  • Consult Factory for Optional Material and Trim

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Body Style

Globe
Material

Cast Steel
Trim

CR-13 Stem, CR-13 Disc Face, HF(COCR) Seat Face; API Trim # 8
ANSI Class

150
End Connection

Flanged/Raised Face
Product Size

2", 2-1/2", 3", 4", 5", 6", 8"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
40.7
8 x 2 x 14.01
1
2-1/2"
59.18
8.5 x 2.5 x 14.05
1
3"
77.66
9.5 x 3 x 17.2
1
4"
112.42
11.5 x 4 x 20.78
1
6"
201.3
16 x 6 x 24.45
1
8"
312.4
19.5 x 8 x 28
1
10"
475.2
13 x 10 x 60.11
1
12"
0
28 x 24 x 116
1
