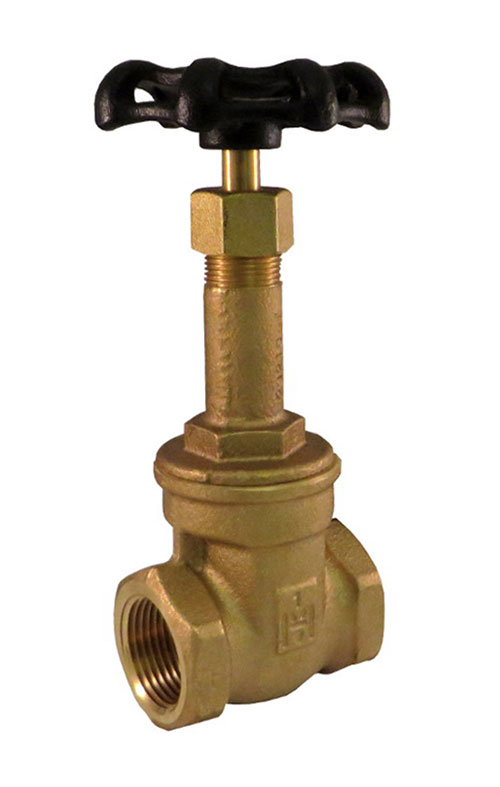

IB640

  • Bronze Gate Valve, 125 SWP – 200 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 2
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Threaded

Stem Type

Rising Stem

Bonnet Type

Threaded

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.8
1.75 x 0.25 x 4.38
10
8.5 x 8.5 x 4.125
3/8"
0.88
1.81 x 0.375 x 4.38
10
8.5 x 8.5 x 4.125
1/2"
0.82
2 x 0.5 x 4.38
10
9 x 9 x 2.125
3/4"
1.56
2.13 x 0.75 x 5.84
6
10.5 x 6 x 3.25
1"
2.22
2.56 x 1 x 7.06
6
9 x 8 x 3
1-1/4"
3.52
2.78 x 1.25 x 8.78
4
8.5 x 8.5 x 4.125
1-1/2"
4.3
2.81 x 1.5 x 9.5
4
10.5 x 10 x 3
2"
6.8
3.31 x 2 x 11.5
2
12 x 7 x 3.5
2 1/2"
11.56
4.19 x 2.5 x 14.31
1
16 x 5.5 x 5.5
3"
15.8
4.63 x 3 x 16.63
1
4"
31.2
5.5 x 4 x 15.5
1
