IB617

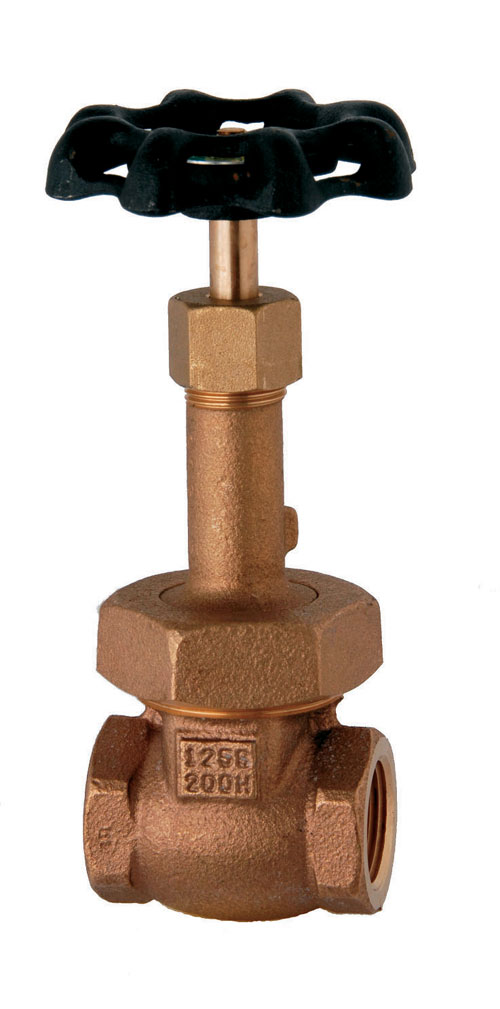

  • Bronze Gate Valve, 125 SWP – 200 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 2
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Threaded

Stem Type

Rising Stem

Bonnet Type

Union

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.04
1.75 x 0.25 x 5.13
10
9 x 9 x 2.125
3/8"
1.06
1.88 x 0.375 x 5.13
10
9 x 9 x 2.125
1/2"
1.56
2.13 x 0.5 x 5.5
10
11 x 8.25 x 3
3/4"
2.04
2.25 x 0.75 x 6.25
6
9.5 x 7.5 x 3
1"
2.54
2.56 x 1 x 7.19
6
11 x 8.25 x 3
1-1/4"
3.82
2.75 x 1.25 x 8.56
4
10.5 x 8 x 3
1-1/2"
5.72
3.25 x 1.5 x 9.63
4
10.5 x 10 x 3
2"
8.14
3.63 x 2 x 11.75
2
12 x 7 x 3.5
2 1/2"
14.95
4.5 x 2.5 x 14.5
1
16 x 5.5 x 5.5
3"
20.95
4.88 x 3 x 16.75
1
16 x 5.5 x 5.5
