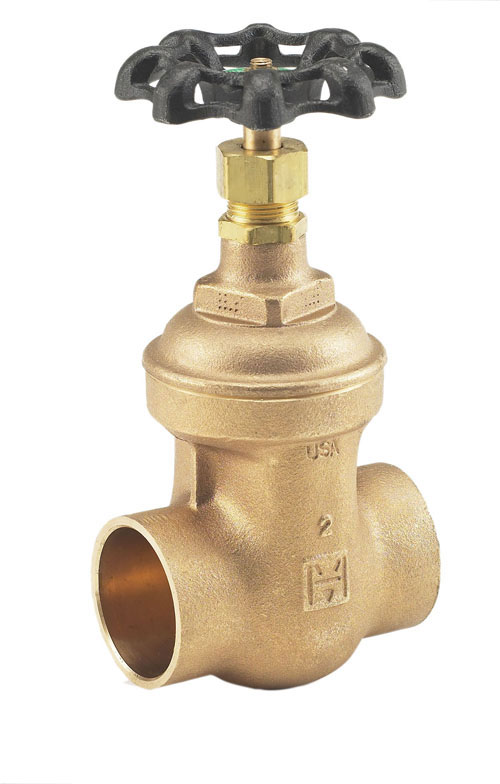

IB647

  • Bronze Gate Valve, 125 SWP – 200 WOG, Solder Ends
  • Conforms to MSS SP-80 , Type 1
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock
  • Non-Rising Stem (3/8″ – 3″)
  • Rising Stem (4″)

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Solder

Stem Type

Non-Rising

Bonnet Type

Threaded

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/8"
0.66
1.63 x 0.375 x 3.56
6
8.5 x 8.5 x 4.125
1/2"
0.72
1.88 x 0.5 x 3.56
10
8.5 x 8.5 x 4.125
3/4"
1.38
2.5 x 0.75 x 4.75
6
10.5 x 6 x 3.25
1"
1.86
3 x 1 x 5
6
10.5 x 8 x 3
1-1/4"
3.46
3.63 x 1.5 x 6.5
4
11.5 x 9 x 3
1-1/2"
2.68
3.25 x 1.25 x 5.88
4
9.5 x 7.5 x 3
2"
6.14
4.31 x 2 x 7.44
2
9.5 x 7.5 x 3
2 1/2"
8.98
4.81 x 2.5 x 9.13
1
16 x 5.5 x 5.5
3"
13.36
5.44 x 3 x 10.38
1
16 x 5.5 x 5.5
4"
25.78
7.25 x 4 x 15.5
1
