IB645

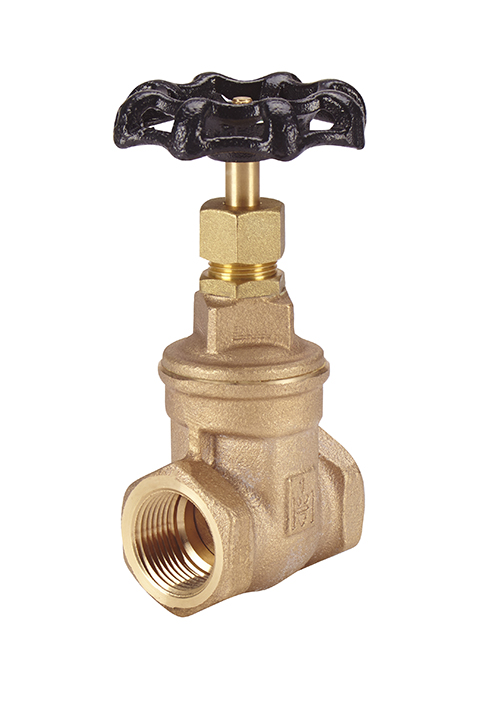

  • Bronze Gate Valve, 125 SWP – 200 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 1
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock
  • Non-Rising Stem (1/4″ – 3″)
  • Rising Stem (4″)

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze

ANSI/Pressure Rating

125 SWP – 200 WOG

End Connection

Threaded

Stem Type

Non-Rising

Bonnet Type

Threaded

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Valve Type

Gate Valve

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.8
2 x 0.5 x 3.63
10
10.5 x 6 x 3.25
3/8"
0.78
1.75 x 0.25 x 3.63
10
9 x 9 x 2.125
3/4"
0.8
1.81 x 0.375 x 3.63
10
9 x 9 x 2.125
3/4"
1.475
6
10.5 x 6 x 3.25
1"
2.1
6
10.5 x 8 x 3
1-1/4"
3.1
4
9.5 x 7.5 x 3
1-1/2"
4.02
2.81 x 1.5 x 6.34
4
10.5 x 8 x 3
2"
6.76
3.31 x 2 x 7.44
2
9.5 x 7.5 x 3
2 1/2"
10.1
4.19 x 2.5 x 9.13
1
16 x 5.5 x 5.5
3"
14.18
4.63 x 3 x 10.47
1
16 x 5.5 x 5.5
4"
30.95
5.5 x 4 x 15.5
1
